ROLLING MILL ENGINES

a High-pressure Cylinder.b Low-pressure Cylinder.b' Steam Receiver,c C Piston Valves.

D D Valve Chests.

e Valve Spindles.f f Pistons and Rod.

G Crosshead.h Connecting Rod .i Crank Shaft .k Crank Discs.

l Double Eccentrics and Link Motion. _ y Stop Valve.m Weigh or Reversing Shaft. z Platform.

n Small Engine for Starting and Reversing.

O Starting Handles.

p Main Framing.

q Pillar Blocks with Steel Covers.

R Slide Bars,s Side Framing.

t Oval Boss with Steel Hoop for securing Side Framing.

U Sole Plate,v Auxiliary Slide Valve.w Escape Valves.x Steam Pipe.

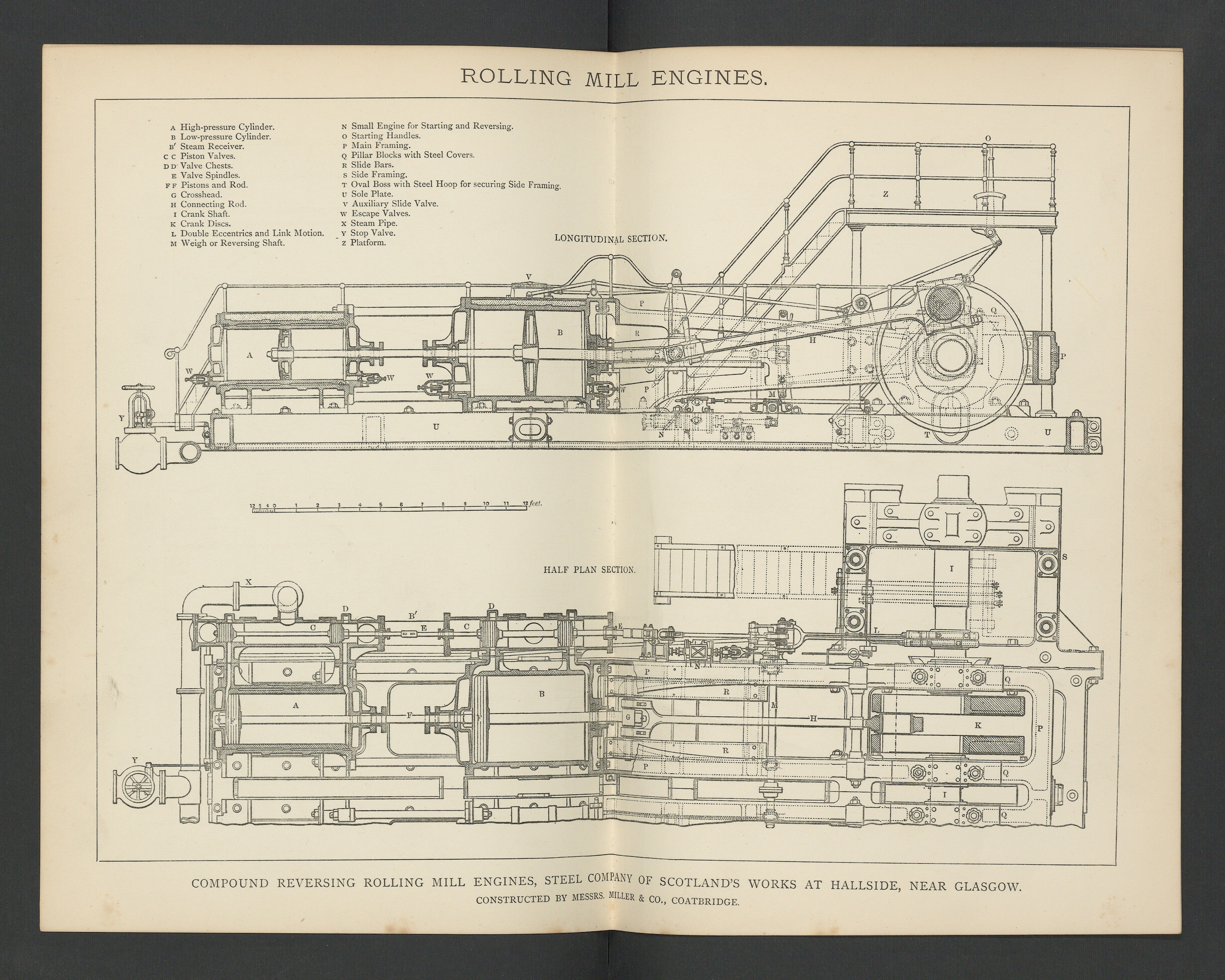

LONGITUDINAL SECTION.

'.

,2340 1 » i ♦ s 6 > 3 _ 9 _ 10 it n fiet .

i!

Gl

G

Lr

-py

3

G

\G

HALF PLAN SECTION

I

rm jj

N

.

COMPOUND REVERSING ROLLING MILL ENGINES, STEEL COMPANY OF SCOTLAND’S WORKS AT HALLSIDE, NEAR GLASGOW.

CONSTRUCTED BY MESSRS. MILLER & CO,, COATBRIDGE .
